Technical Information

Broadcast sites

Ch26 H - Observatory Hill Nelson - Digital TV channels & FM Radio stations

  • Channel: UHF 26
  • Polarity: Horizontal
  • No of Digital TV channels: 10 & 2 Radio
  • Frequency : 514 mhz
  • Transmitter: 25dbw eirp Solid State digital
  • Location: Observatory Hill, near Water tank site 349 Princes Drive, Nelson
  • GPS: - 41.291382 south 173.254562 East
  • Stand-by Power: none now ( Civil Defence said they may take it in an emergency. The very time when we would need it )
  • Pictures: Mpeg4 & Mpeg2 - 25 frames interlaced 720 x 576
  • Audio: Mpeg2 stereo 48khz at 224kb
  • Height above Sea Level: 180 Metres
  • Mast: 15 metres above the road including antennas
  • Operation: 24 hours - 7 days
  • Program Feed: Digital Microwave link
  • Coverage: Nelson, Richmond, Wakefield, Stoke, Mapua, Motueka, Kaiteriteri
  • Master Control: 133 Waimea Road Nelson control room
  • Antenna radiation pattern: 9db NNE & SSW, plus 12db West



Ch27 V Takaka Hill - West of Motueka - Digital TV channels & FM Radio stations

  • Channel: UHF 27
  • Polarity: Vertical
  • No of Digital TV channels: 10 & 2 Radio
  • Frequency : 522 mhz
  • Transmitter: 29dbw eirp Solid State digital
  • GPS 41°1.25' S 172°51.75' E - 1693B Highway 60
  • Location: Takaka Hill, 50 k/m west of Nelson 1km north of Takaka hill road (SH6)summit
  • Stand-by Power: None now ( Civil Defence said they may take it in an emergency. The very time when we would need it )
  • Height above Sea Level: 970 Metres
  • Mast: 15 metres including antennas
  • Pictures: Mpeg4 & Mpeg2 - 25 frames interlaced 720 x 576
  • Audio: Mpeg2 stereo 48khz at 224kb
  • Operation: 24 hours - 7 days
  • Program Feed: Digital Microwave link and UHF off air link
  • Coverage: Nelson, Richmond, Tahunanui & Hillsides,  Atawhai, Motueka, Golden Bay, parts of Marlborough
  • Master Control: 133 Waimea Road Nelson - Studio control room
  • Antenna radiation pattern: 8db NNW and 15db SSE

Blenheim

Radio Stations, data & WIFI services - Wither Hills

GPS - 41°32.72' S 173°57.67' E - 271 Redwood St

NB All Freeview set top boxes and all digital TV's are fully authorised and setup to recieve all Mainland TV's 10 TV channels and radio stations. Mainland TV has an agreement with Freeview so we are all on the same digital platform using the same compatable systems with allocated channels by the World digital body.

Although the biggest Freeview, is just one of a number of digital free to air promoters and they do not control all the specifications, own any TV stations or channels or allocate UHF TV licenses or frequencies.

There are 19 Radio stations and numerous WIFI providers that use the same sites as Mainland TV broadcasts from. The Radio transmitters are all FM and have a range of approx 60km's.

Full details

    Technical Services

    TV coverage map

    Radio coverage map

    Above - Observatory Hill - Nelson security camera - Broadcast site on top of the hill

    Above - Marlborough site - Security camera over looking Blenheim

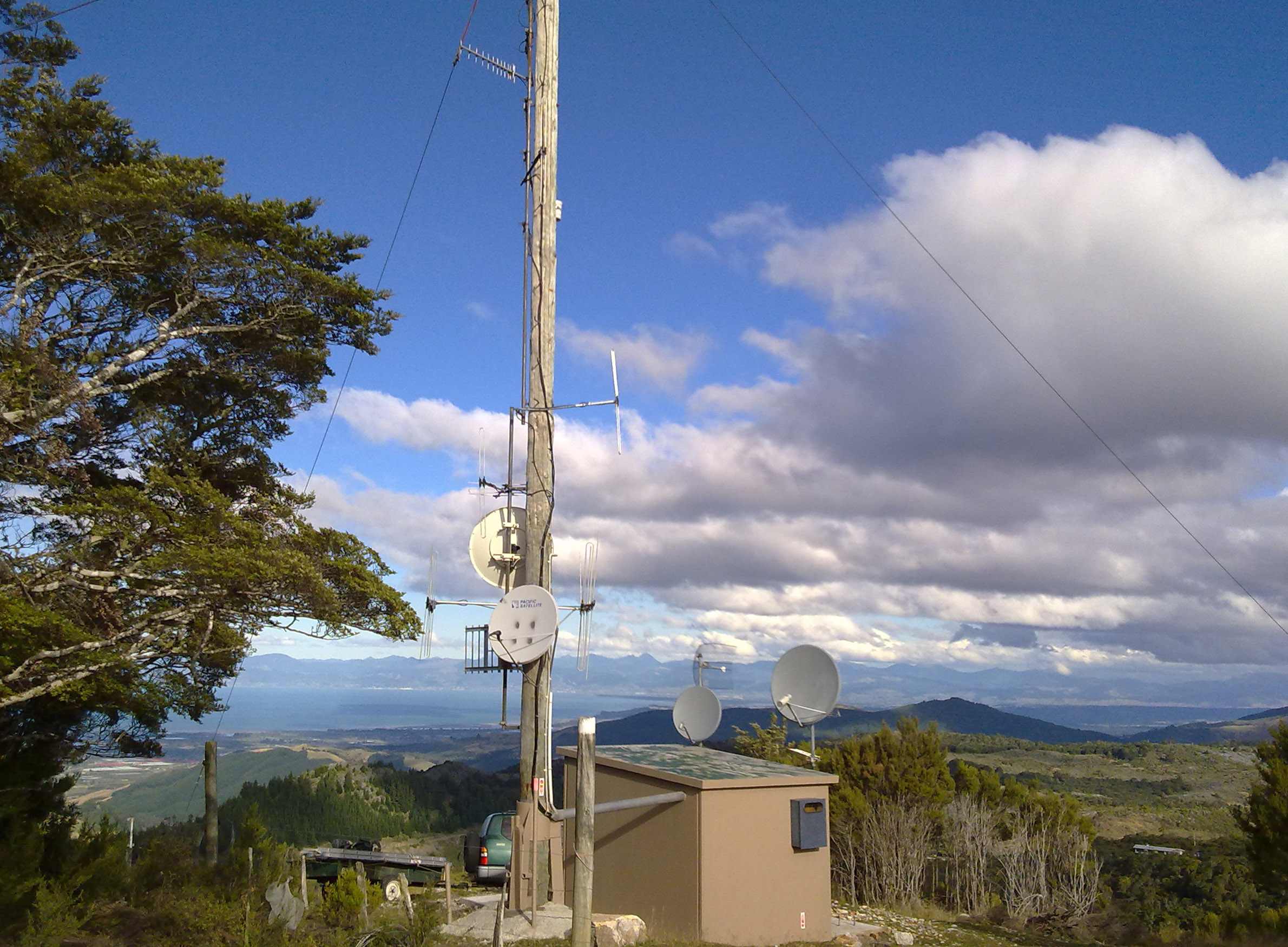

    Above - Takaka Hill site 3000 feet ASL - Covers Golden Bay - behind, Motueka & Tasman below & Nelson in the background

    Most of the antennas are out of shot at the top of the mast
